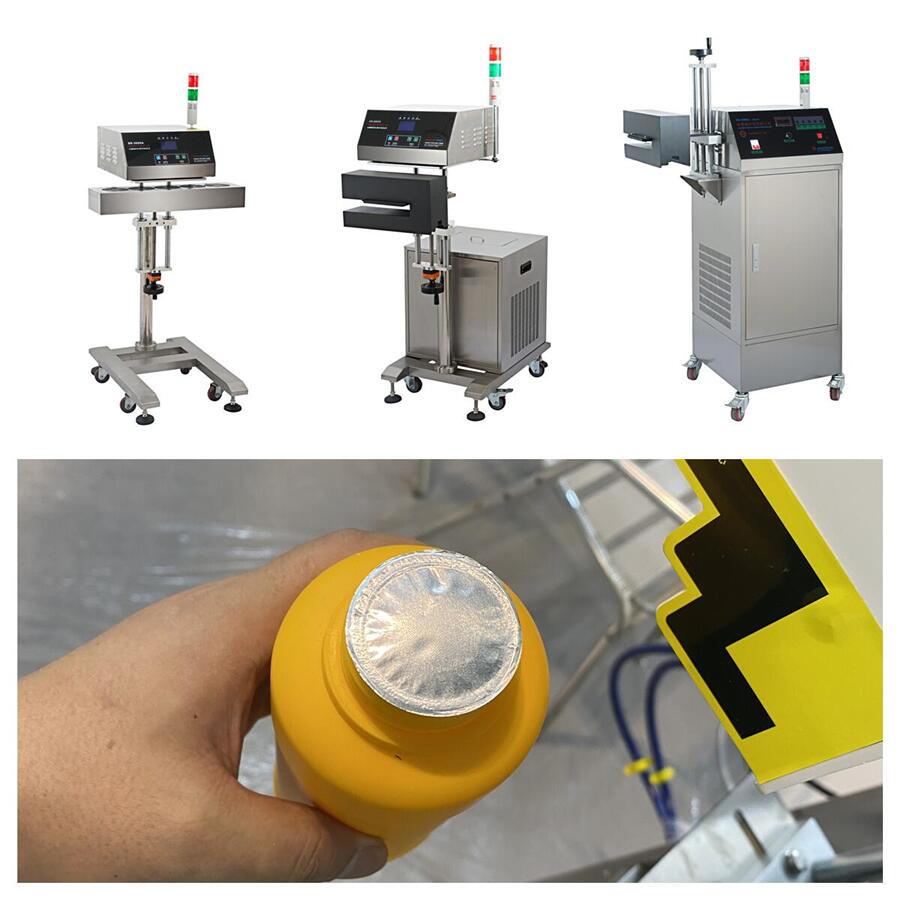

Automatic Water-cooling Sealer SR-6000A




This machine is a water-cooled high-power electromagnetic induction aluminum foil sealing machine, with strong versatility, widely used in food, condiment, medicine, chemical preparation and other products bottle packaging sealing.It meets the continuous sealing requirements of modern high-speed production line, with advanced functions and simple operation. It can adjust the power according to the characters and characteristics of different filling materials, so as to achieve the purpose of firm and beautiful sealing.


https://www.youtube.com/watch?v=--Ok2h9k1NM&t=7s





Automatic water cooled induction sealing machine for packaging process line SR-6000A

Features:

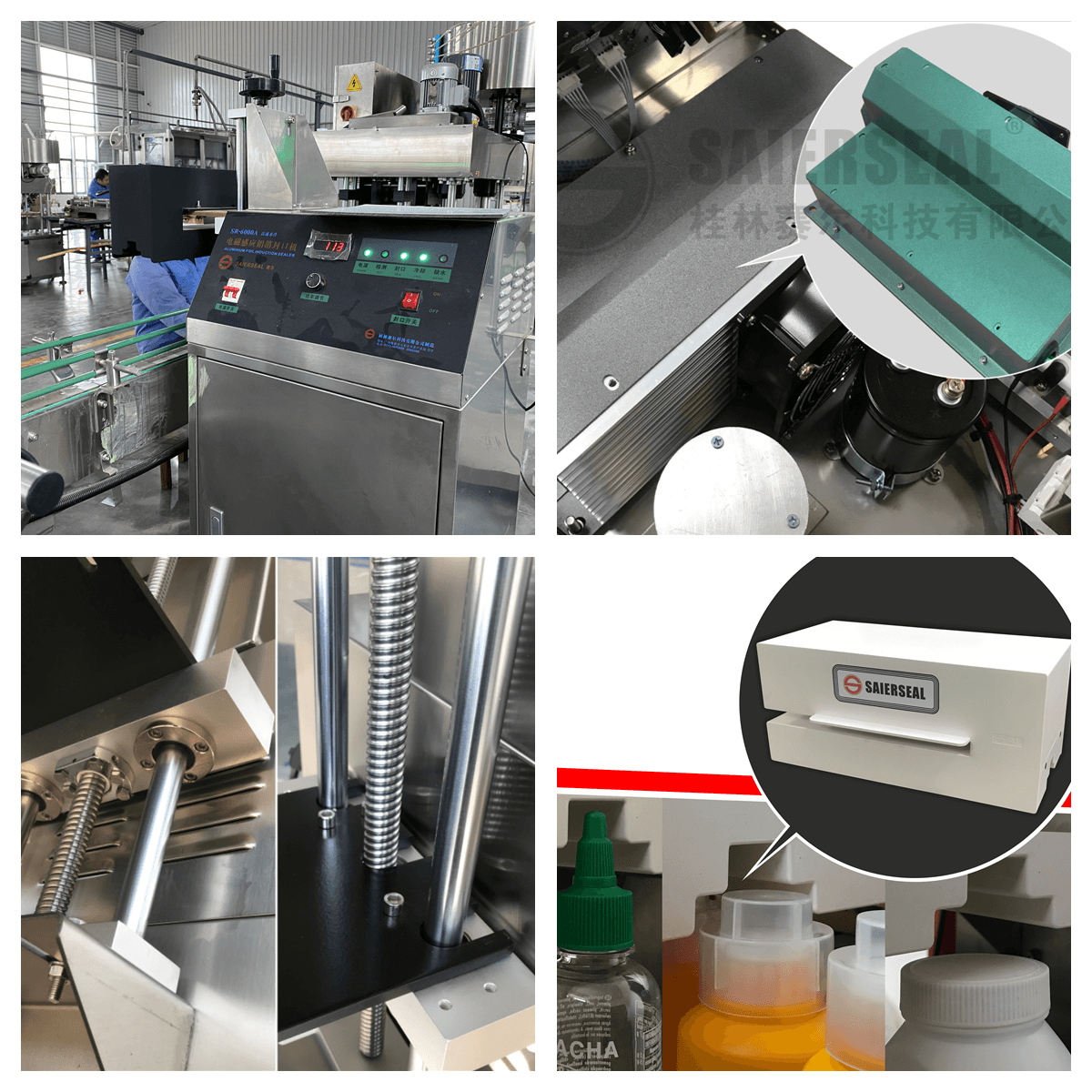

1、with the unique tunnel design, this kind induction sensor can increase the sealing speed.

Even the flip cap bottle & cuspate cap bottle can be sealing perfectly.

2、According to client demand, The induction sensor can be design to turn, in order to for difference bottle size. very small cap bottle and large cap bottle can be sealing by one machine, saving the cost.

5、Sealing fast and efficient. The induction heating foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.

6、Full modular component design, can be against moisture, erosion, dust and magnetism, minimizes maintenance.

Optional parts:

*PLC touch screen with seal counting fuction, Optical-electro sensor detect, pause during bottle missing or jam, auto operating after re-set .

* the conveyor and missed foil cap rejector





Product: for pesticide, tablet & capsule, foods, cosmetic, lubricant &oil packaging etc. Plastic bottle and glass bottle sealing.





Model: SR-6000A

Sealing bottle diameter: 15mm-75mm &20-150mm or 20-200mm

(We can produce different sealing head according to your demand)

Sealing speed: 400 bottles per minute

Applicable bottle height: 0-490mm

Power: 4000W

Applicable power: 50/60Hz, 220V

Induction head size: 620mm*115mm*128mm

Body material: SUS304 stainless steel

Machine weight: 75Kg

Packing size: 1170mm*610mm*570mm

920mm*410mm*270mm
